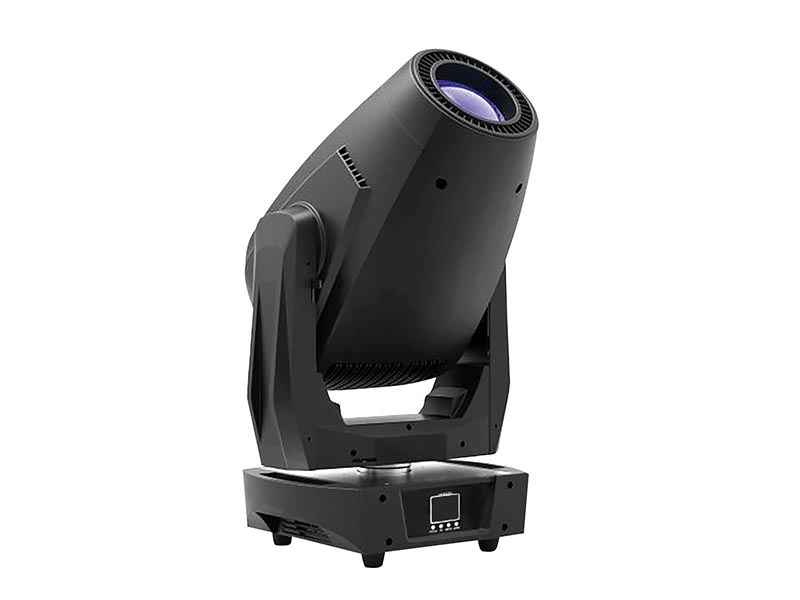

600W Cutting Lamp

CY-B001
600W Cutting Lamp
Input voltage / frequency: AC100V-240V, 50/60Hz.
Rated power: 750W-1050W.
Light source: Use one high-brightness
and high-power 500W-800W white LED.
Light source color temperature: 8000K/6500K, life: 20,000 hours.
CRI: GL6 ≥ 74 / GL6H ≥ 90.
Spot uniformity: 90%.
Beam angle: 9°-46°, zoom lens, linear zoom.
Control channel: 2 channel
modes: 37/42 international standard DMX512 channels.
Operating mode: voice control, self-propelled, master-slave, DMX512.
Color: CMY color mixing
CTO color temperature linear adjustment, uniform and smooth
CMY + CTO color mixing system
(GL6: 2700K-8000K; GL6H: 2700K-6500K)
Color wheel: 6 fixed color plates + white light, semi -color effect,
color film can be positioned with rainbow effect and two-way rotation.
2 gobo wheels: fixed gobo wheel: 8 fixed gobos + white color,
with gobo dithering function,rotary gobo
wheel: 6 plug-in rotary gobos + white color,
with gobo shake and gobo arbitrary positioning function.
Mirror: 1 independent 5-facet prism, prism  positive and
negative free rotation, and prism positioning.
Focusing: DMX linear high-definition focusing, the far and near
definition of the pattern can be adjusted freely.
Atomization: built-in atomizing mirror can generate soft
wash effect adjustment, 0%~100% linear atomization.
Strobe: 1-25 times / sec. Ultra-high speed strobe effect,
optional random strobe and pulse strobe.
Dimming: 0-100% linear dimming.
Aperture: 5%~100% smooth adjustment.
Horizontal/vertical: horizontal 540°, vertical  270°,
automatic reset correction function.
The power factor PF ≥ 0.98.
Cutting wheel:a set of controllable spot chamfering
system consisting of 8 chamfering blades, the entire
chamfering system can be rotated by 90°.
Through the precise control of the cut sheet, any shape can be
created, and the dynamic effect plate: the super dynamic simulation
of the dynamic turbulent flame, the turbulent water and effects.
Display board: LCD display, you can enter the menu
address code and other settings without power on
with the inside rechargeable battery.
